Rigid endoscope repair facilities world wide use our excellent crafted endoscope
repair parts.
Our customed designed sapphire objectives can be used as
a very good example for innovative endoscope repair parts development.
Image bundles, light fiber tube assemblies and set screws are preferred endoscope
repair parts for endoscope repair technicians.
Our unique quality control device for rigid endoscopes as well as the test
ocular for image bundles proves again that we are the first choice for
rigid endoscope replacement parts.
|
|
|
|
|
|
|
Sapphire
Objectives for Rigid Endoscopes |
 |
Sapphire
Negative inside stainless steel sleeve (polished), use like Compact
Objective, AUTOCLAVABLE
All individual lenses are assembled on distance. No UV-Adhesive
is used (No separation during autoclaving unlike the Compact Objective
design)
Our exclusive designed Endoscope Objectives for Rigid Arthroscopes/Sinuscopes
and Cystoscopes will even improve OEM Endoscopes.

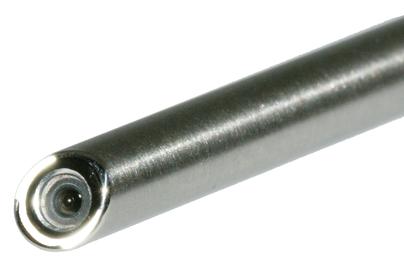

Move mouse over picture to see objectives inside the endoscopes
|
|
44-0020-00 |
Sapphire
Objective incl. Field lens+spacer |
2.78
0/80deg |
Sapph/S.S. |
|
44-0010-00 |
Sapphire
Objective incl. Field lens+spacer |
2.78
25/80deg |
Sapph/S.S. |
|
44-0009-00 |
Sapphire
Objective incl. Field lens+spacer |
2.78
25/95deg |
Sapph/S.S. |
|
44-0007-00 |
Sapphire
Objective incl. Field lens+spacer |
2.78
30/80deg |
Sapph/S.S. |
|
44-0005-00 |
Sapphire
Objective incl. Field lens+spacer |
2.78
30/95deg |
Sapph/S.S. |
|
44-0006-00 |
Sapphire
Objective incl. Field lens+spacer |
2.78
70/80deg |
Sapph/S.S. |
|
44-0012-00 |
Sapphire
Objective incl. Field lens+spacer |
2.78
30/55 |
Sapph/S.S. |
M2
/ M3 |
44-0011-00 |
Sapphire
Objective incl. Field lens+spacer |
2.78
45/80deg |
Sapph/S.S. |
|
| |
|
|
|
|
Solderable
sapphire windows |
 |
These sapphire windows are
used for solder applications. Our solderable sapphire windows are
compatible with most rigid endoscope models |
|
| 80-0590-00 |
Solderable
sapphire windows |
2.00
x 0.50 |
Sapphire |
|
| 80-0598-00 |
Solderable sapphire
windows |
2.50 x 0.30 |
Sapphire |
|
| 80-0600-00 |
Solderable
sapphire windows |
2.75 x 0.30 |
Sapphire |
|
| 80-0601-00 |
Solderable sapphire windows |
2.75 x 0.60 |
Sapphire |
|
| 80-0599-00 |
Solderable
sapphire windows |
3.00
x 0.30 |
Sapphire |
|
| 80-0596-00 |
Solderable sapphire
windows |
3.30 x 0.60 |
Sapphire |
|
| 80-0597-00 |
Solderable
sapphire windows |
3.40 x 0.60 |
Sapphire |
|
| 80-0610-00 |
Solderable sapphire
windows |
4.90 x 0.60 |
Sapphire |
|
| 80-0611-00 |
Solderable
sapphire windows |
5.80 x 0.50 |
Sapphire |
|
| 80-0602-00 |
Solderable sapphire windows |
6.00 x 0.80 |
Sapphire |
|
| 80-0613-00 |
Solderable
sapphire windows |
6.00 x 2.00 |
Sapphire |
|
| 80-0603-00 |
Solderable sapphire windows |
6.50 x 0.80 |
Sapphire. |
|
| 80-0612-00 |
Solderable
sapphire windows |
6.60 x 1.00 |
Sapphire |
|
| 80-0604-00 |
Solderable sapphire windows |
7.90 x 1.20 |
Sapphire |
|
| |
|
|
|
|
Solderable
Sapphire Negative |
 |
|
|
|
| 80-0615-00 |
Solderable sapphire
negative |
2.20 x 0.50 r=0.92 |
Sapphire |
Dyo |
| 80-0616-00 |
Solderable sapphire negative |
2.40 x 0.60 r=0.93 |
Sapphire |
Dyo |
| |
|
|
|
|
Prizm |
 |
|
|
|
| 80-0500-00 |
Prizm |
1.50x1.40x30deg |
Glass |
Dyo |
| 80-0501-00 |
Prizm |
1.60x1.30x70deg |
Glass |
Dyo |
| |
|
|
|
|
|
Image Bundles |
|
|
|
|
| 80-0084-00 |
Objective |
0.8
for Uretero |
Glass/S.S. |
MR-6/9 |
| 46-0002-00 |
Image bundle incl.
Obj. |
L=512 , 70 deg. |
Glass/Fib. |
MR-6/9 L |
| 46-0003-00 |
bundle incl. Obj. |
L=433
, 70 deg. |
Glass/Fib. |
MR-6/9 |
| 46-0011-00 |
Image bundle incl. Obj. |
L=530, 70 deg. |
Glass/Fib.. |
MR-0642 |
|
|
|
|
|
|
|
